| Brand Name : | KUNCAN |
| Model Number : | KC-AD-EU-12V3A |
| Certification : | CE |
| Price : | USD1.67/PCS |
| Payment Terms : | D/A,L/C,T/T,D/P |
| Supply Ability : | 3000 Piece/Pieces per/Week |
| Delivery Time : | 28days |
Production Specification:
| Output | Output voltage | 12v |
| Output current | 1A 2A | |
| Output power | 24W | |
| Input plug types | EU/ US /UK /AUS /South Korea /South African Plugs | |
| Out plug types | DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug, Din Plug.etc | |

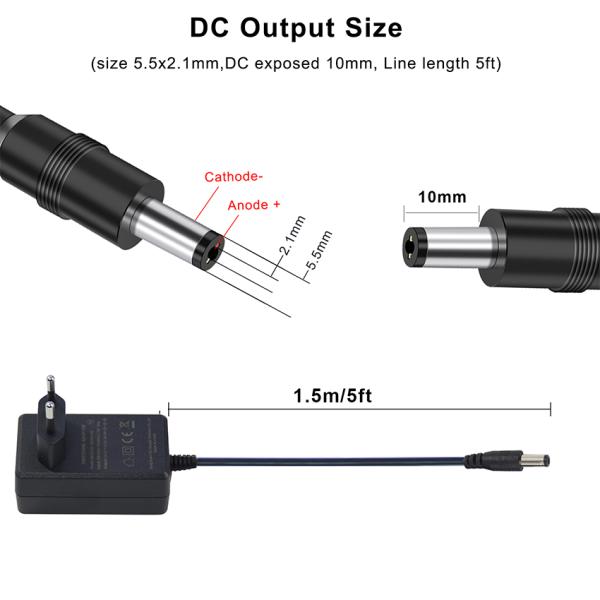

| DC jack size | 5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm, 3.5*1.0mm, 4.0*1.7mm, 2.5*0.7mm .etc | |
| Safety protection | Over voltage protection | 120% min |
| Over current protection | 120% min | |
| Short circuit protection | auto recovery | |
| Over hot protection | auto recovery | |
| Electronic characteristics | Operating Temperature | -40~50°C |
| Storage Temperature | -40 to +85 °C | |
| Humidity | 10%~95%RH | |
| Efficiency | 80% | |
| Ripple And Noise | Output voltage 1%, Ripple&Noise≤120mv | |
| Turn-on Delay Time | 3 second max | |
| Overshoot at Turn-on | 10% max when turn on or off | |
| AC leakage Current | 0.25mA max at AC 240V voltage | |
| Load Regulation | ±5% | |
| Line Regulation | ±5% | |
| High-Voltage test | Primary to secondary: 3 kV / 5mA 60S | |
| Drop Test | 0.75m drop test, 6 times | |
| Burn-In Test | 100% load, 5hours | |
| Application | CD/DVD,MP3/MP4,Digital camera,Comunication Terminals Etc | |
| Safe Certificate | CE ROHS FCC CB BS SAA C-tick PSE KC | |
Company Information:
FAQ:
Q1: Are you factory or trade company?
A: We are factory of more than 16 years export experience.
Q2: What is your terms of payment?
A: T/T (bank transfer),Western Union, Paypal,etc.
Q3: What is your terms of delivery?
A: DHL, EMS,FedEx,Ocean shipment,ect.
Q4: Samples ?
A : 2-5 pieces free samples are available,fright on you. delivery time usually is 2-3 days. Customized samples will take 5-10days.
Q5:What is the MOQ?
A: 500 pcs .
Q6:What is delivery time if we place an order ?
A:We always delivery the goods within 15-20 working days after
received your payment.
|
|
